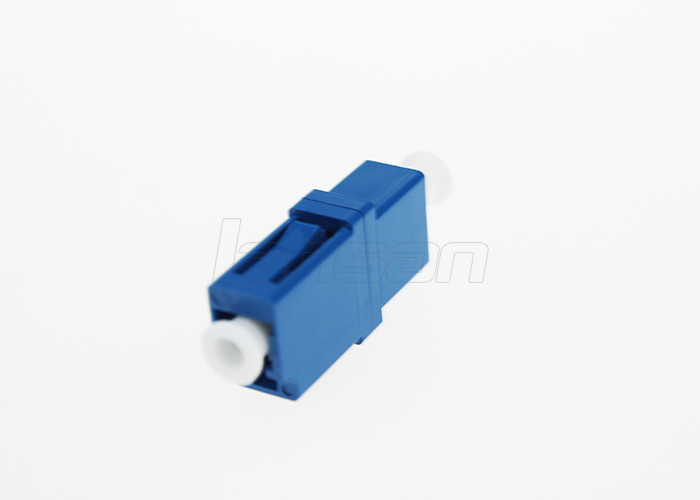

CATV Fiber Optic Cable Assembly Single Mode LC / UPC Simplex Optical Fiber Adapter

  • 1
  • 2
  • 3

Brand Name : LANSAN/ OEM/ ODM

Model Number : LC

Certification : ISO, REACH, ROHS, TELL Certified

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 100000 pcs/ day

Delivery Time : 8 - 10 work days

Packaging Details : 1 pcs/bag

Model No : SC fiber optic connector

Transmission Medium : Single-Mode

Application : Patch cord

Ferrule Endface : UPC

name : fiber optic adapter

Contact Now

Single Mode LC / UPC Simplex Fiber Optical Adapter Low Insertion Loss

Applications
  • CATV
  • Active device termination
  • Metro
  • Test equipment
  • Local Area Networks (LANs)
  • Premise installations
  • Telecommunication networks
  • Data processing networks

Features
  • Ferrule end surface predomed
  • UL-rated plastic housing
  • Telcordia style boots
  • Boots in a variety of colors
  • Free-floating ceramic ferrule
  • Low insertion loss and back reflection loss
  • Precision anti-rotation key and corrosion
Availability
The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
Clips are available for duplex connectors
Housing kits without ferrule are available.

Specifications
Single mode
Insertion Loss ≤0.30dB
Return Loss ≥50 dB
Durability ≤0.2 dB typical change, 1000 matings
Operating Temperature -40 to + 85°C
Tensile strength
>10kg
Ferrule Hole Sizes 125.0+1/-0μm, Concentricity: ≤1.0μm
125.3+1/-0μm, Concentricity: ≤1.0μm
125.5+1/-0μm, Concentricity: ≤1.0μm
126.0+1/-0μm, Concentricity: ≤1.0μm
